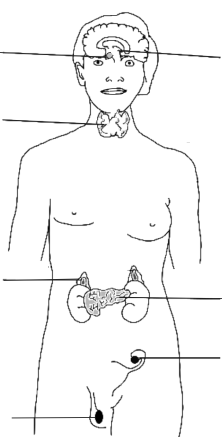

Label the diagram below. (7)

Question 1

Labelling diagrams: Say the term/label aloud to yourself first before clicking on the?”.

pituitary gland

(hypophysis)

thyroid gland

adrenal gland

testis

hypothalamus

pancreas

ovary

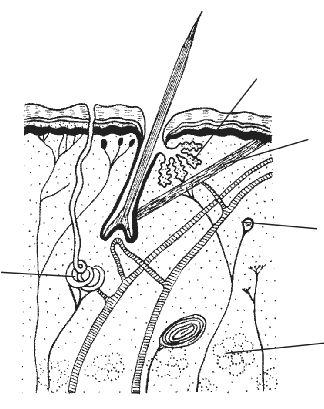

Label the diagram below than answer the questions that follow.  (5)

Question 2

sweat gland

fat cells

touch corpuscle

erector muscle

sabaceous gland

Name three structures that enable the body temperature to be regulated. (3)

Sweat glands, hair, erector muscles, blood vessels to skin. (Any 3)

Narrowing of blood vessels in cold weather. (1)

Vasoconstriction

State the function of the sabaceous gland. (2)

Nourishes the hair by secreting oil and keeps hair and skin supple and waterproof.

Describe how the human skin maintains the core body temperature on a day when the environmental temperature is around 40°C. (5)

Heat receptors in the skin are stimulated by high temperature.

Impulses sent to hypothalamus and blood vessels.

Vasodilation occurs, arterioles to the skin become wider, more blood flows to the capillaries.

More heat reaches the skin surface and is lost to the surroundings.

More blood flows to the sweat glands and sweating increases.

More heat is lost through evaporation of sweat.

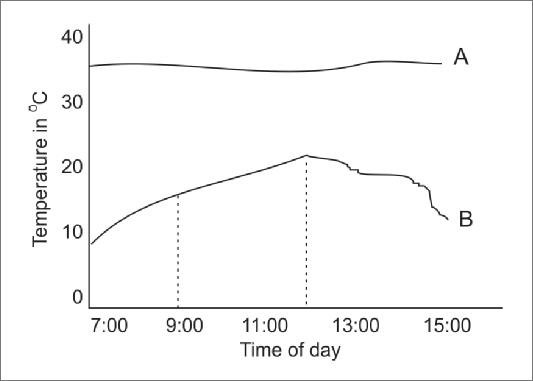

Study the graph below which shows the temperature variations of two organisms from 7:00 to 15:00, then answer the questions that follow.

Question 3

Which graphs, A or B represents a homeothermic animal? (2)

A

Explain why the temperature of animal B as shown on the graph is not constant. (2)

Animal B is an exothermic animal where their body temperature fluctuates with that of their environment.

Explain why the temperature of animal B reaches its maximum at the time shown. (2)

Mid-day is the hottest time of the day.

What is the approximate body temperature of animal B at 9:00? (2)

16°C

Give an example of an animal represented by B.

Lizard
