The Female Reproductive System

Question 1

Label the diagram of the human egg (ovum) before fertilisation.  (4)

When”labelling” diagrams, say the term aloud to yourself first before clicking on the “?”.

layer of jelly

(protein coat)

cell surface

membrane

cytoplasm

(contains yolk)

nucleus with

23 chromosomes

Question 2

Give the correct biological term for each of the following statements. (4)

Period of pregnancy.

gestation

Muscular structure in which the foetus develops.

uterus

Process that results in an egg being released from the Graafian follicle.

ovulation

Discharge of blood, mucus and egg via the vagina.

menstruation

Question 3

Study the diagram of the female reproductive system, then answer the questions that follow.

uterus

ovary

cervix

vagina

vulva

urethra

bladder

Label the diagram below. (7).

Name the structure that is responsible for producing eggs. (1)

ovary

State two features that the fallopian tube possesses which helps the eggs to move towards the uterus. (2)

cilia

muscles

Name the part that disintegrates every 28 days to form the menstrual flow. (1)

endometrium

Name the part that serves as the site for sperm deposit as well as the birth canal. (1)

vagina

Question 4

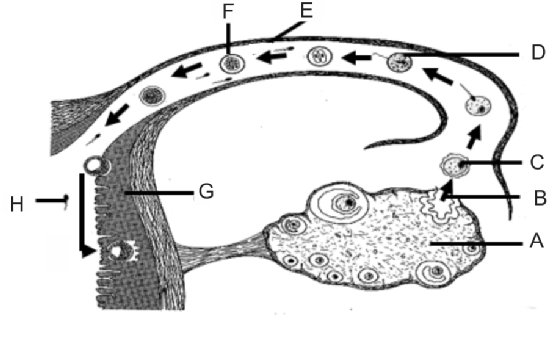

The diagram below represents a part of the human female reproductive system after copulation.  Study the diagram and answer the questions that follow.

Name the parts A, E and G. (3)

A: Ovary E

E: Fallopian tube

G: Endometrium

When in the menstrual cycle does ovulation take place? (1)

Day 14 after the start of menstruation.

Describe the process represented by D. (3)

Fertilisation take place. The sperm (n) fuses with the ovum(n) to form a zygote (2n).

State the number of chromosomes that would be present in the nucleus of: i) Cell C; ii) One cell of F; iii) Cell H (1)

i) 23

ii) 46

iii) 23
